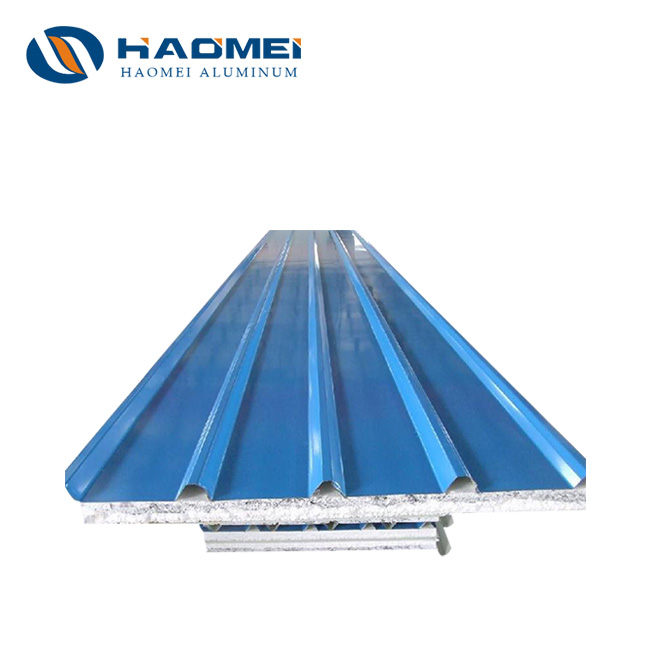

Color coated aluminum roofing sheet
Alloy A1100. 3003. 3004. 3105. 5006. 5052. 3011. etc .
Temper H16, H18. H24. H26. H28
Thickness From 0.013mm to 2mm
Width Standard width 1240mm, 1270MM
Special width 1000mm. 1200mm. 1240mm, 1270mm. 1520mm. 1620mm
Bulk Discount
If you buy over 50 tons, there will be a favorable price. If you contact us, you can enjoy more discount.
Product Description
As the derivative and deeply processed product, the color coated aluminum roofing sheet is manufactured by painting colorful coating materials or by conglutinating organic film on the basic sheet after the proper surface treatment, which is very suitable for the further cold rolling shaping process. Basically, the painted sheet is layered into three layers including the basic aluminum sheet, the galvanized zinc and the painted layer.
| Alloy | A1100. 3003. 3004. 3105. 5006. 5052. 3011. etc . |
| Temper | H16, H18. H24. H26. H28 |
| Thickness | From 0.013mm to 2mm |
| Width | Standard width 1240mm, 1270MM
Special width 1000mm. 1200mm. 1240mm, 1270mm. 1520mm. 1620mm |
| Diameter | Standard dia: 1200mm
Interior dia: 150mm.405mm. 500mm. 505mm. 510mm Outer Diameter: 1200mm |
| Weight | 2.5 T/coil, 3.0 T/coil |
| Coating thickness | PE:>=16 micron , PVDF:>=25 micron |
| Protective film | As per customer’s request. |
| Coating paint | PVDF, PE(Polyester), epoxy, polyamide, polyurethane |
| Color | Soid. metallic, high gloss.stone.timber.brush.mirror.sparkling, RAL or by customer requirements. |
| Weight | As per customer’s request |
| Surface | Embossed, mill finish, coated |
| Gloss | 10-100% |
| Coating Hardness
(pencil resistance) |
More than 2h |
| Coating adhesion | 1J |
| Impact Resistance | No peeling or cracking(50 kg/cm) |
| Application | ACP.wall cladding.facades.roofs and canopies.ceilings.signboards. blind window.display platforms.electrical panels.etc |
| Coating Thickness | PE coating:more than 16 micron
PVDF coating:more than 25micron |
| Remark: | Different specification of HONGBO Color- Coated Aluminium Coil are available, We provide customized service. |
| Product | Alloy | Tempers | Thickness(mm) | Width(mm) | Length(mm) | |
| Plate |
1xxx~8xxx |
F,O,Hxxx,Txxx |
6~260 | 800~4300 | 1000~38000 | |
| Sheet | 0.2~6 | 910~2600 | 1000~12000 | |||
|
coil |
Hot rolled | 3.0~12 | 1300~2800 | coil | ||
| Cold rolled | 0.2~4.0 | 500~2600 | Coil | |||

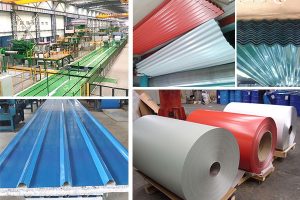

Application of color coated aluminum roofing sheet
Household Appliance
1. Refrigerator door panels &side panels, Washer, Freezers, Air conditions
2. Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods
3. Computer Panels , DVD/DVB panels, TV back panel etc
Teaching Board: whiteboard, blackboard, greenboard(chalk board)
Indoor Decoration: security Door, Fireproof Door, kitchen cabinet, ceiling, Lift Wall Panel, Elevator decoration
Shipping Industries: Ship, Yecht, Marine.
